WAVLINK Laptop Docking Station 3 Monitors(Max Resolution: Single 8K or Triple 4K), 12-1 USB C Hub with 10Gbps M.2 PCIe/SATA SSD Enclosure, 2*HDMI + DP, 100W PD, for MacBook Pro/Air Mac mini M1–M4

About this item

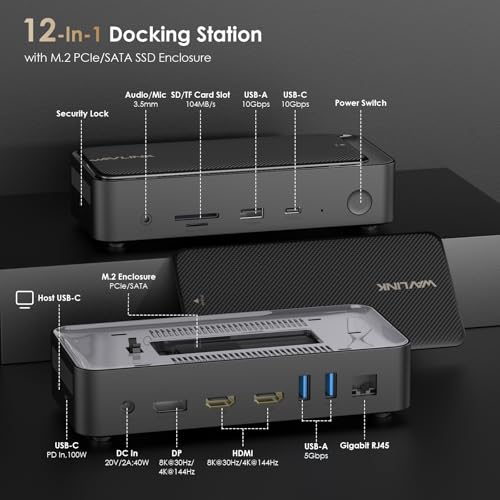

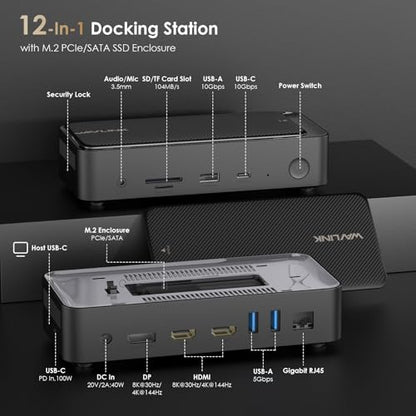

• 12-IN-1 Laptop Docking Station: The WAVLINK multi-port USB-C dock features a built-in M.2 SSD slot, dual 4K HDMI and a DisplayPort, multiple high-speed USB ports (including 10Gbps), Gigabit Ethernet, 100W PD charging, and SD/TF card readers. It enables multi-monitor setups, fast networking, and peripheral expansion through a single cable, while also allowing for instant storage upgrade with an M.2 NVMe or SATA SSD

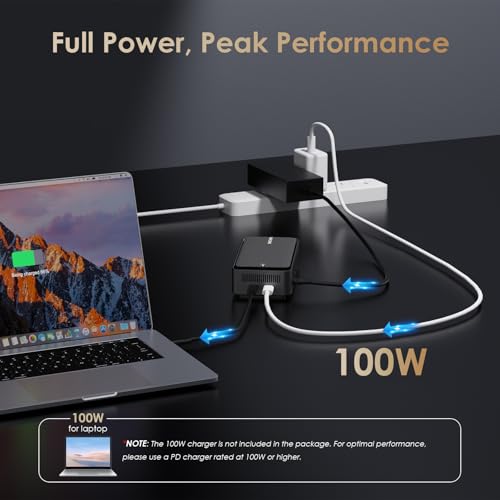

• 100W PD Charging & Enhanced Independent Power: This docking station supports up to 100W laptop charging and is backed by a dedicated 20V/2A (40W) power adapter for the dock itself. This independent power ensures stable, simultaneous operation of multiple high-power peripherals—including 4K HDMI/DP displays, the M.2 SSD enclosure, and all USB ports—significantly reducing risks of disconnection, screen flickering, or SSD drops. Note: For laptop charging, connect your own 100W PD charger (not included) to the USB-C PD input port, and ensure your host laptop's Type-C port supports charging

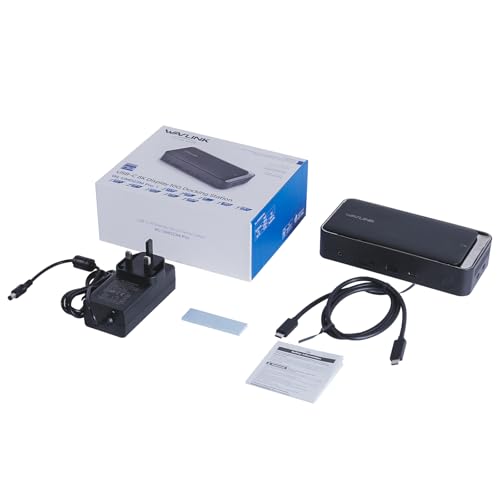

• Power Supply Guide: The included 20V/2A adapter powers the dock only (not your laptop); to charge your laptop, connect your own PD charger to the dock’s PD Input port (charging speed varies by device); for non‑PD laptops, using a DC charger requires exact voltage, connector and polarity compatibility to prevent device damage; for best stability under high-load use, Mode B (Expansion + Charging) is recommended

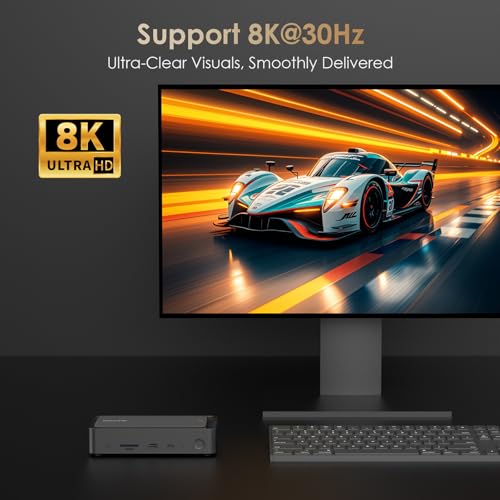

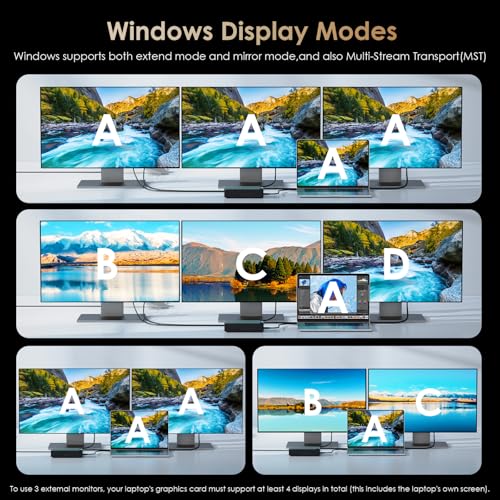

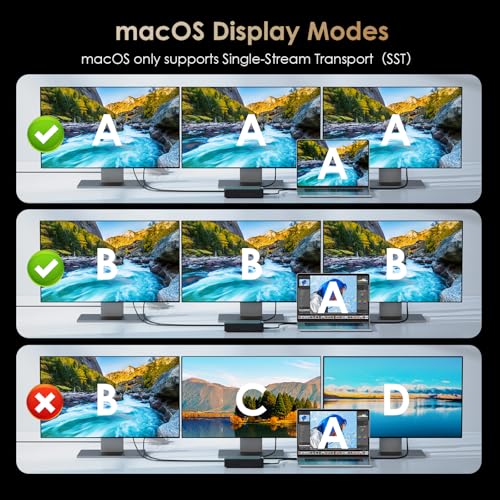

• USB C 8K Triple Display: The Type-C to HDMI/DP multiport docking station hub supports mirror and extend display modes. Windows laptops can connect up to three monitors for triple 4K@60Hz output via 2 HDMI and DP ports; single display supports up to 8K@60Hz / 4K@144Hz (under DP1.4 with DSC1.2). Note: Some Windows laptops may have limitations on external display count and resolution due to graphics card specifications. Mac OS Limitation: Due to Apple hardware restrictions, MacBook/Mac mini (M4/M3/M2/M1) only supports ONE external monitor in extended mode; connecting 2–3 external monitors will work only in mirror mode, not extended multi-screen

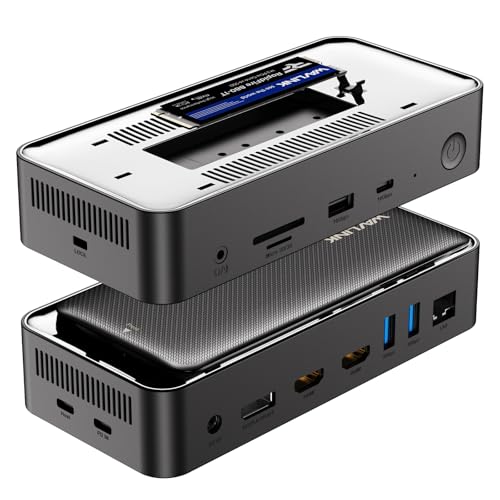

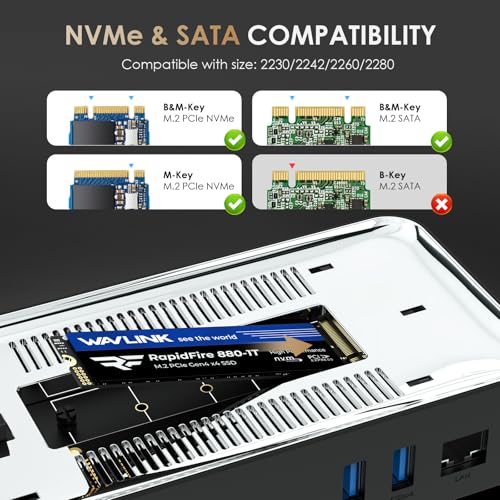

• Transfer Files In Seconds: The built-in M.2 SSD enclosure supports 10Gbps M.2 PCIe NVMe and 6Gbps M.2 SATA SSDs. It includes one USB 3.2 Gen2 USB-A and USB-C port, both offering up to 10Gbps for fast file transfers. Additional 5Gbps USB-A ports are available for peripherals like keyboards, mice, or printers. SD/Micro SD card slots support simultaneous reading at up to 104MB/s, and the 2500Mbps RJ45 Ethernet port delivers fast, reliable wired network connection
• Wide Compatibility: The hybrid multiport dock is compatible with Thunderbolt 3/4 laptops and full-function USB-C devices with video output. It works with Windows, Mac OS, Chrome OS, Linux, iPad OS, Android, iOS, and Harmony OS, supporting USB-C desktops, laptops, and OTG-enabled tablets/phones. Plug and play, no driver is required

Overview

• Brand: WAVLINK
• Color: Black
• Hardware Interface: 3.5mm Audio, DisplayPort, HDMI, USB 3.1 Type A, USB 3.2 Gen 1
• Compatible Devices: Apple M4/M3/M2/M1 (expand Mac Mini M4) and Intel Macs (with macOS 11 or later) /Dell XPS 13 7390 2-in-1 (Ice Lake), XPS 12 9250, XPS 13 9350, XPS 13 9360， XPS 13 9370, XPS 13 9380，XPS 15 9550 (Intel + Nvidia GPU), XPS 15 9550 (Intel GPU)， XPS 15 9560 (Intel + Nvidia GPU), XPS 15 9570, XPS 17 9700，XPS 12 XPS9250，Dell LATITUDE 7480, Alienware 13 R3, Alienware 15 R3, Alienware 17 R4, Dell Precision 15 M7510, Dell Precision 17 M7710, Dell XPS 13 9365, Dell Precision 15 5000 Series (5510), Dell Precision 15 3000 Series (3510), Dell Latitude 7370 (3C7XP), Dell Latitude 12 7275, Alienware 17 R3, Dell Precision M5510 15.6" /HP EliteBook Folio G1 (Model V1C43EA), Spectre x360 Convertible 13-w000 (SKU W9A95AV), Spectre x360 - 13-ac003la, Spectre x360 - 15-ch000, Elite X2 1012 G1, HP Spectre x360 - 13-ae011dx (Late 2017)，Elite x2 1012 G2，HP Spectre x360 (2017)，HP EliteBook Folio G1 12.5", HP ZBook 15 G3, HP Zbook 17 G3 Workstation, HP ZBook Studio Series, HP Elite X2 1012 G1, HP Spectre x360 2-in-1 13-W023DX 13.3 /Intel NUC8i7HVK (Hades Canyon), NUC8i7HNK (Hades Canyon), NUC9VXQNX (Ghost Canyon), Intel NUC9V7QNX (Ghost Canyon), Intel NUC9i9QNX (Ghost Canyon), Intel NUC9i7QNX (Ghost Canyon), Intel NUC9i5QNX (Ghost Canyon) /Thinkpad P50, Thinkpad P51, Thinkpad P70, Yoga C930, X1 Carbon 7th Gen, ThinkPad P70 Series Mobile Workstation, Legion Y720, ThinkPad T570, Miix 720, ThinkPad X1 Carbon (5th Gen 2017), ThinkPad X1 Yoga (2nd Gen 2017), ThinkPad P50 /MSI VR Ready GS43VR Phantom Pro-006; ASUS ZenBook Pro UX501VW and more Apple M4/M3/M2/M1 (expand Mac Mini M4) and Intel Macs (with macOS 11 or later) /Dell XPS 13 7390 2-in-1 (Ice Lake), XPS 12 9250, XPS 13 9350, XPS 13 9360， XPS 13 9370, XPS 13 9380，XPS 15 9… See more
• Total USB Ports: 6
• Product Dimensions: 6.9"L x 3.1"W x 1.6"H
• Number of Ports: 12
• Total HDMI Ports: 2
• Wattage: 100 watts
• Manufacturer: WAVLINK
